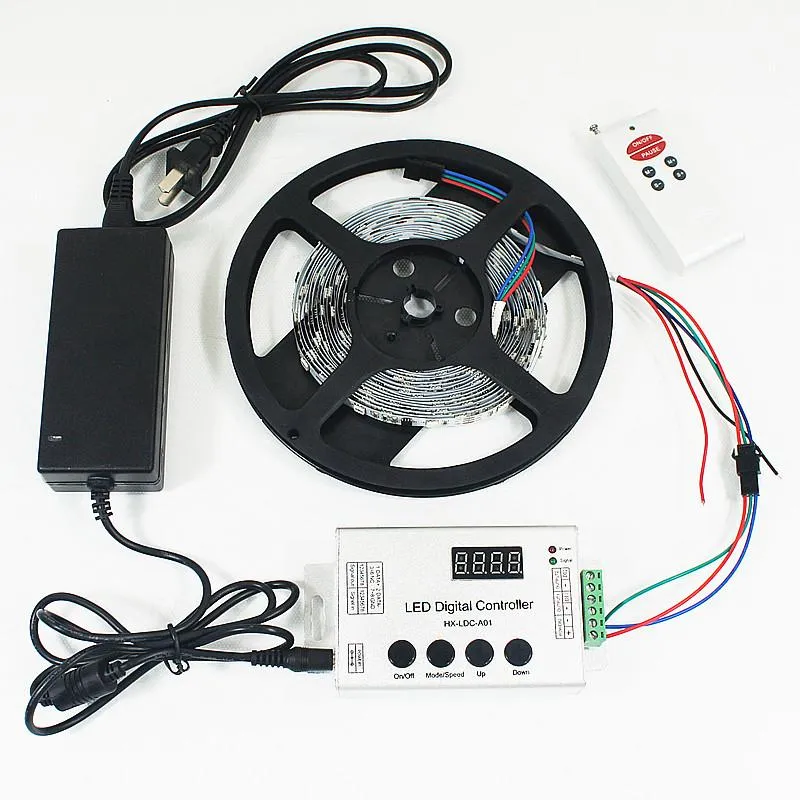

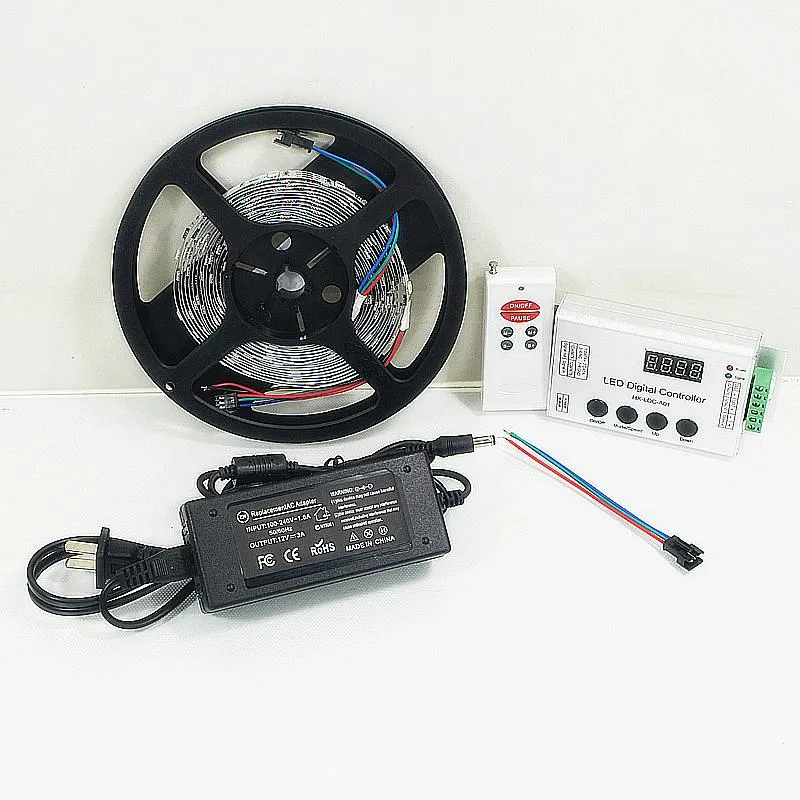

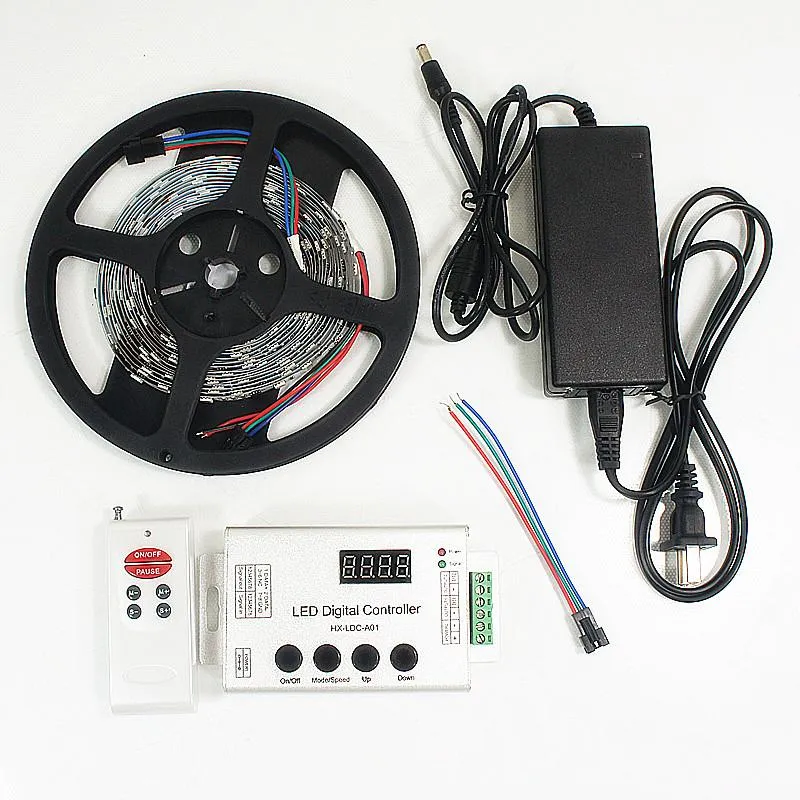

This 5050 150LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x DC12V TM1914 IC Dream Color LED flexible Strip in 5meters

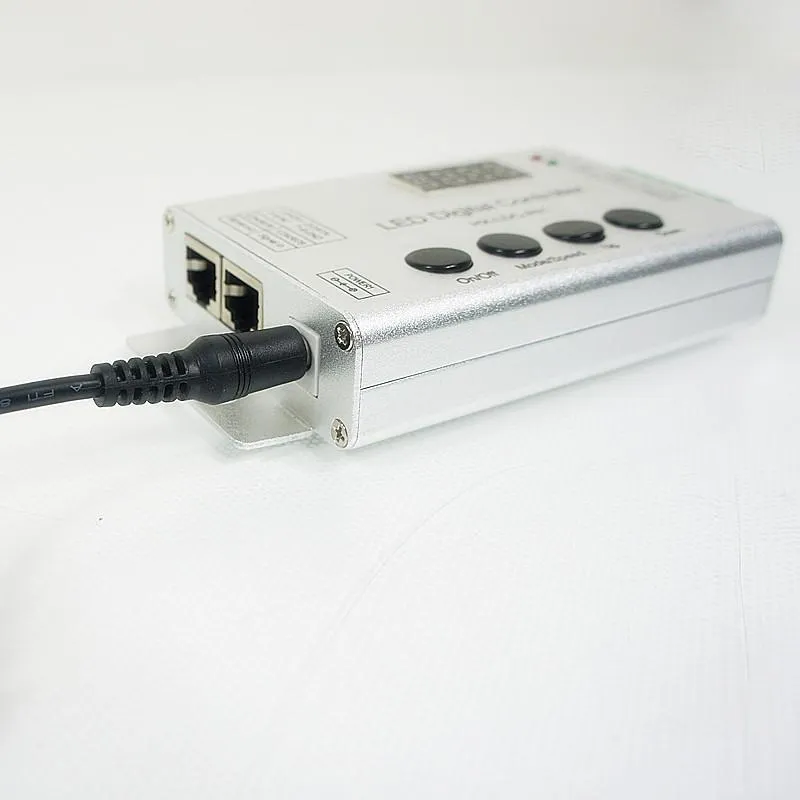

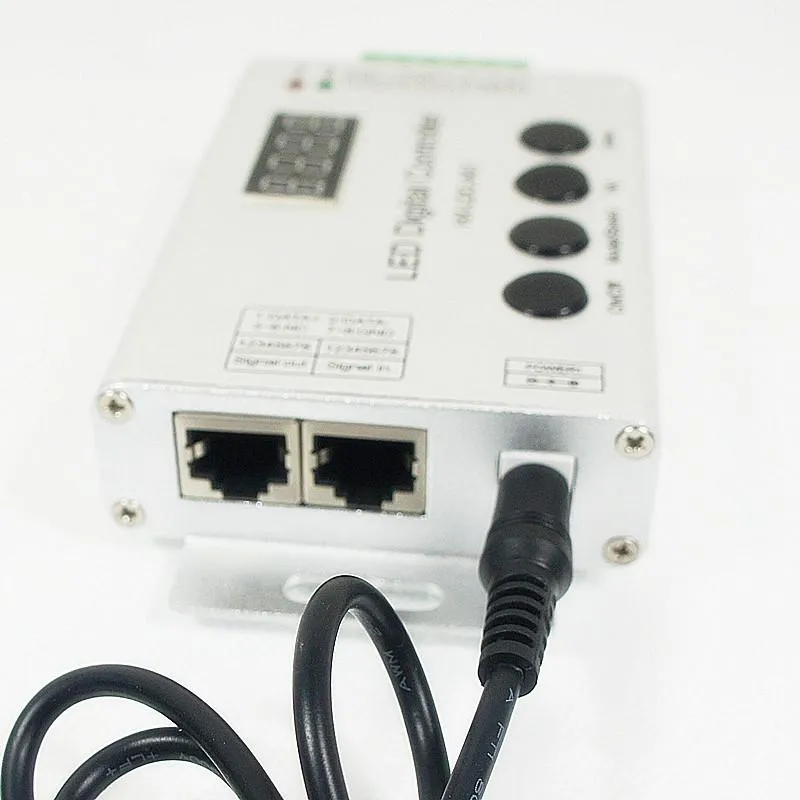

2. 1 x DC12V RF Dream Color RGB LED Strip Controller
3. 1 x DC12V 4Amp Power supply
4. 1 x 3pin SM Connector
Dimension: 5000*10*2.0(mm)
Power: 12VDC
Wattage: 9W/Mtr
LED QTY.: 30LED/Mtr
IC QTY.: 10pcs/Mtr
Power: 12VDC
Wattage: 9W/Mtr
LED QTY.: 30LED/Mtr
IC QTY.: 10pcs/Mtr
Cutability: 3LED/cutting
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, Waterproof IP67 silicone Tube
Packing:5Mtr/roll

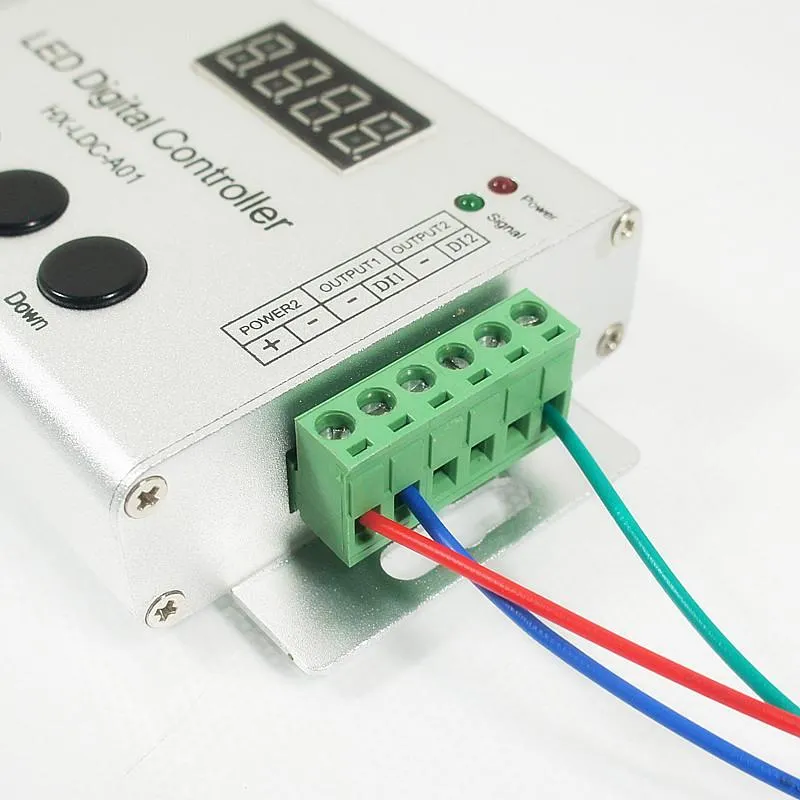

Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, Waterproof IP67 silicone Tube
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Specification of the 36Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 12V
Output current: 4A
Dimension(mm): 117*50*32(mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode /Speed button. When in mode regulator function, it is for “Mode ”. When in speed regulator function, it is for “Speed ”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode /Speed button. When in mode regulator function, it is for “Mode ”. When in speed regulator function, it is for “Speed ”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
